Broadcom

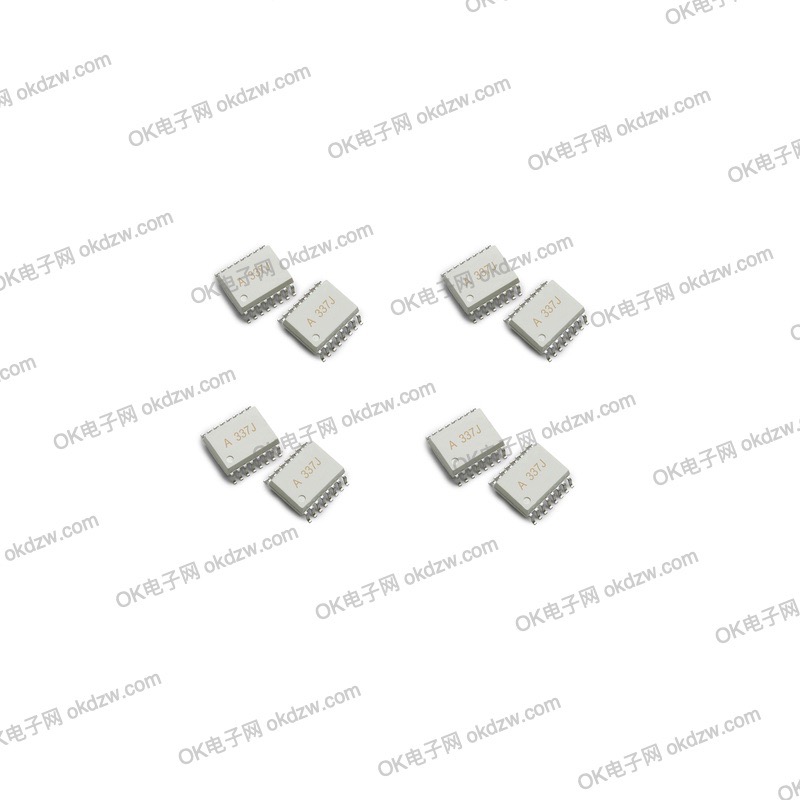

ACPL-337J-000E

Features

• 4.0A Maximum Peak Output Current

• Rail-to-Rail Output Voltage

• 2.0A Miller Clamp Sinking Current

• Integrated Fail-Safe IGBT Protection

• DESAT Detection, “Soft” IGBT Turn-off and Fault Feedback

• Under Voltage Lock Out (UVLO) Protection with Feedback

• 250ns Maximum Propagation Delay over Industrial Temperature Range.

• Integrated LED driver

• 30kV/μs Minimum Common Mode Rejection (CMR) at
  VCM = 1500 V

• Wide Operating VCC Range: 15 to 30 V

• Industrial Temperature Range: -40°C to +105°C

• Safety Approvals:

• UL Recognized 5000 VRMS for 1 min.

• CSA

• IEC/EN/DIN EN 60747-5-5 VIORM = 1414 Vpeak

• Available Options:

• 000E = Tube Packaging Option

• 500E = Tape and Reel Packaging Option

Applications

• IGBT/Power MOSFET Gate Drive

• AC/Brushless DC Motor Drives

• Renewable Energy Inverters

• Industrial Inverters

• Switching Power Supplies

337J 资料下载 http://www.okdzw.com/Help_Files/av02-4390en_ds_acpl-337j_2014-05-09.pdf
